10 T/H MBBR MBR Wastewater Treatment Equipments For Sewage Treatment / Reclaimed Water Reuse

10 T/h MBBR-MBR integrated equipment for sewage treatment, reclaimed water reuse, high-demand pretreatment, special separation, etc

Quick Details

The MBBR-MBR integrated coupled sewage treatment system we provide is an innovative and high-efficiency solution that deeply combines the MBBR (Moving Bed Biofilm Reactor) enhanced biological treatment process with the MBR (Membrane Bioreactor) high-efficiency separation technology within a single reactor. This system is not a simple series connection of the two technologies, but through optimized design, the biofilm carriers of MBBR are fluidized in the MBR membrane tank, thereby simultaneously maximizing the biological treatment efficiency and achieving ultra-purification of effluent quality in a compact space. It is particularly suitable for high-standard discharge and water reuse requirements.

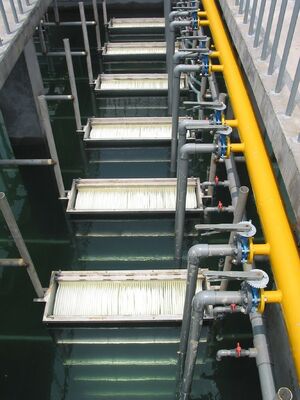

Its core technical principle is as follows: special suspended biological fillers (MBBR carriers) are dosed into the reactor equipped with membrane modules. These carriers provide a huge attached growth surface area for microorganisms, forming a highly active biofilm system that can efficiently degrade organic matter and perform nitrification and denitrification for nitrogen removal. Its treatment capacity and shock load resistance are significantly superior to the traditional activated sludge process. At the same time, the MBR membrane modules (usually ultrafiltration or microfiltration membranes) at the end of the reactor directly conduct high-efficiency solid-liquid separation, which can 100% retain suspended solids, biofilm carriers and most bacteria and viruses. The effluent is clear and transparent, eliminating the need for a secondary sedimentation tank, and the water quality stably meets the surface water standard or direct reuse standard.

The core advantages of this integrated coupled system are concentrated in:

1.     Excellent effluent quality and stability: The combination of the physical retention effect of MBR membranes and the enhanced biochemical treatment of MBBR biofilms ensures that the core effluent indicators such as SS, COD and ammonia nitrogen are extremely excellent and stable.

2.     Ultra-high treatment efficiency and shock resistance: The abundant microbial communities on the biofilm greatly increase the biomass per unit volume and treatment efficiency, with strong adaptability to fluctuations in water quality and quantity.

3.     Ultimate compactness and land saving: Biological treatment and advanced filtration are integrated into one, the system is highly integrated, and the floor area is reduced by about 40%-50% compared with the traditional "biochemical + advanced treatment" process.

4.     Intelligent operation and management: Adopting full-automatic PLC control, integrating online membrane fouling monitoring and cleaning system, the operation and maintenance are simple and convenient.

This system is an ideal choice for projects such as industrial park wastewater upgrading, high-quality recycling of municipal sewage, high ammonia nitrogen organic wastewater treatment, and projects with land shortage or urgent construction needs. We will provide customized system design and integration solutions according to your specific influent conditions, target water quality and treatment scale.

Technical Specifications of 10 T/h MBBR-MBR Integrated Equipment

Application Scope:

Municipal sewage treatment and high-standard reclaimed water reuse, treatment of various industrial parks and industrial wastewater, decentralized sewage treatment and environmentally sensitive areas, high-demand pretreatment and special separation, and projects with stringent restrictions on water quality, land occupation or construction period.

MBR/MBBR Process Flow Chart

Sewage (Municipal/Domestic Sewage, Industrial Wastewater)

↓

Pretreatment (Grit Grille, pH Adjustment, Biological Treatment, etc.)

↓

MBR/MBBR System

↓

MBR Product Water

↓

Discharge

Treatment Capacity of MBBR-MBR Equipment
