| Brand Name: | aa&ss |
| Model Number: | UV-GL |
| MOQ: | 1 set |
| Price: | $100-$8000 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1-30 sets/month |
Ultraviolet Sterilization: Applied in municipal/industrial water supply, food and beverage, wastewater treatment, aquaculture, etc.
Quick Details
|
UV Sterilizer |
|
Housing Material: 304/316 Stainless Steel |
|
Lamp Sleeve Material: Quartz |
|
Treatment Flow Rate: Customizable per Requirements |
|
UV Lamp Type: Low Pressure High Output Amalgam Lamp (LPHO) / Medium Pressure Mercury Lamp (MP) |
|
Sterilization Efficiency: ＞99.99% |
|
Input Voltage: 200-400V AC, 50/60Hz |
Against the global trend of pursuing safe and sustainable water treatment solutions, ultraviolet (UV) disinfection technology has emerged as an indispensable ultimate disinfection barrier in municipal water supply, food and beverage, medical and pharmaceutical, aquaculture, and numerous industrial processes, thanks to its core advantages of high efficiency, broad spectrum, no chemical residues, and no alteration to water quality. We professionally provide two major series of UV sterilization systems, namely the flow-through type and the submerged type, and meet the full-scenario application requirements ranging from pipeline-type closed treatment to open water body disinfection with the most suitable technical forms.
Ultraviolet rays (with a specific wavelength of 254 nanometers) can penetrate the cell walls of microorganisms, destroy their DNA/RNA structures, and deprive them of reproductive capacity, thereby achieving the effect of instant inactivation.
Equipment Advantages:
High efficiency and broad spectrum: It achieves an inactivation rate of over 99.99% for the vast majority of pathogens such as bacteria, viruses, and cysts (e.g., Cryptosporidium and Giardia).
Zero chemical addition: No chemical agents are introduced, and there is no risk of disinfection by-products (such as trihalomethanes), ensuring absolute water safety and good taste.
Instant reaction with no residues: Disinfection is completed as soon as water flows through, requiring no reaction contact time and causing no impact on pipeline pressure and flow rate.
Environmental protection and safety: No risks associated with the storage and transportation of toxic chemicals, featuring safe operation and environmental friendliness.
|
Characteristics |

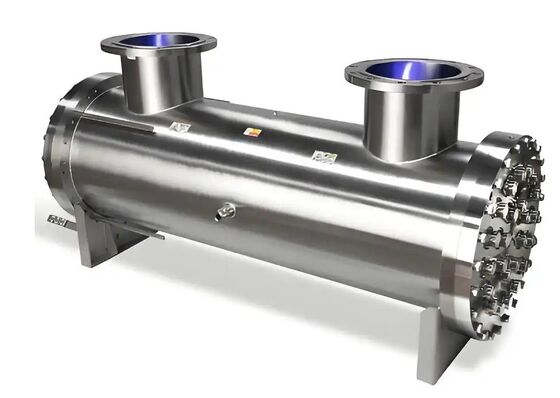

Flow-through UV Sterilizer |
Submerged UV Sterilization System |
|
System Design |
Closed pressure vessel integrated into the pipeline system. |
Open modular lamp bank, directly submerged in water tanks or channels. |
|
Water Flow Conditions |
Flows in pressurized pipelines with stable flow rate. |
In open water bodies, relying on gravity or low-speed flow. |
|
Installation Method |
Connected in series or parallel to the main pipeline, similar to a valve. |
Lamp bank modules are installed at the bottom or side wall of water tanks via supports. |
|
Core Advantages Key Considerations Characteristics |
Compact installation with small footprint. |
No hydraulic resistance loss, no impact on system head pressure. |
|
High energy utilization rate with sufficient reflection. |
Extremely high treatment flow rate with flexible layout. |
|
|
Easy integration with automatic cleaning devices. |
Particularly suitable for renovation and upgrading of existing water tanks. |
|
|
Suitable for continuous and stable pipeline processing. |
Strong adaptability to water flow patterns. |
|
|
System Design |
Inlet water quality (turbidity, UVT) must be relatively stable to maintain disinfection efficiency. |
Lamp banks shall be properly arranged to ensure full contact of water flow with the irradiation area and avoid short-circuit flow. |
|
Water Flow Conditions |
Municipal tap water, direct drinking water |
Effluent disinfection in large municipal wastewater treatment plants |
|
Process water for food, beverage and pharmaceutical industries |
Disinfection in clear water tanks of waterworks |
|
|
Reclaimed water disinfection (post-RO) |
Industrial circulating cooling water systems |
|
|
Swimming pools, ship ballast water |
Treatment of large-scale landscape/aquaculture water bodies |
|
|
Medium and small flow pipeline systems |
Ultra-large flow rate or open water bodies |
Application Fields
|
Application Fields |
Specific Scope of Application and Scenarios |
Recommended Type |
|
Municipal Water Supply and Public Livelihood |
Effluent from waterworks, secondary water supply, direct drinking water in residential communities, circulating water for swimming pools and SPA. |
Flow-through |
|
Food, Beverage and Pharmaceutical Industry |
Process water, cleaning water, beverage ingredient water, terminal protection of purified water/water for injection. |
Flow-through |
|
Industry and Circulation Systems |
Industrial process water, electronic ultrapure water, circulating water for cooling towers, boiler feedwater. |
Flow-through |
|
Aquaculture and Agriculture |
Aquaculture water disinfection, fish egg epidemic prevention, nutrient solution treatment, irrigation water purification. |
Submerged/Flow-through |
|
Municipal Wastewater Treatment |
Advanced disinfection of effluent from wastewater treatment plants (meeting discharge or reuse standards). |
Submerged |
|
Landscape and Environmental Water Bodies |
Algae and microorganism control for landscape lake water and reservoir water sources, ecological water supplement for rivers and canals. |
Submerged |
|
Ships and Special Applications |
Ballast water treatment, emergency water supply, mobile treatment equipment. |
Flow-through |
Technical Specifications
|
Item |
Flow-through System Specifications |
Submerged System Specifications |
|
Typical Treatment Flow Rate per Module |
0.5 - 200 m³/h (multi-module parallel connection available) |
Single-module radiation capacity suitable for 500 - 5000 m³/d, with unlimited parallel connection allowed |
|
UV Lamp Type |
Low Pressure High Output Amalgam Lamp (LPHO) / Medium Pressure Mercury Lamp (MP) |
Low Pressure High Output Amalgam Lamp (LPHO) / Medium Pressure Mercury Lamp (MP) |
|
Rated Power per Lamp Tube |
80W - 800W |
160W - 10 kW+ |
|
Designed UV Dose |
30 - 400 mJ/cm² (adjustable according to standards) |
30 - 100+ mJ/cm² (adjustable according to standards) |
|
Sterilization Efficiency |
99.99% (for target microorganisms) |
99.99% (for target microorganisms) |
|
Main Body Material |
304 / 316L stainless steel, or carbon steel with anti-corrosion coating |
304 / 316L stainless steel lamp frame, quartz sleeve |
|
Quartz Sleeve Material |
High-purity synthetic quartz, light transmittance > 90% |
High-purity synthetic quartz, light transmittance > 90% |
|
Protection Class |
IP65 or higher |
Lamp bank module IP68, ballast cabinet IP65 |
|
Power Supply Requirements |
200-400V AC, 50/60Hz |
200-400V AC, 50/60Hz |
|
Main Certification Standards |
Compliant with/Referenced to: EPA, CE, DVGW, UL, GB |
Compliant with/Referenced to: EPA, CE, NSF/ANSI 61, GB |
