| Brand Name: | aa&ss |
| Model Number: | LX |
| MOQ: | 50 items |
| Price: | $5-30 per piece |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 50-1000 items/month |

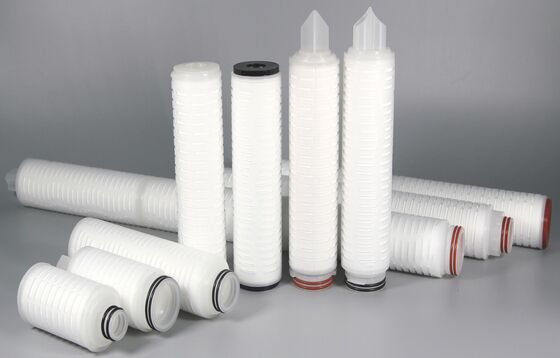

Filter Elements: Made of PP (polypropylene), PES (polyethersulfone), Nylon, and activated carbon composite materials, used for the filtration of various liquids.
In demanding industrial, food, pharmaceutical and ultrapure water preparation sectors, our precision filter cartridge series provides a comprehensive barrier ranging from depth pre-filtration to absolute sterilizing filtration.
Featuring four core materials—PP (polypropylene), PES (polyethersulfone), Nylon and activated carbon composite materials—and covering standard lengths from 10 inches to 40 inches, this product is designed to deliver highly flexible and precisely adaptable filtration solutions for global customers, ensuring the quality, safety of end products and continuity of system operation.
Technical Specifications
Dimensions: A full length range from 10 inches to 40 inches (high-flow type) is available, meeting the full-scale requirements from laboratory small-scale trials to large-scale industrial production.
Standardized Interfaces: All filter cartridges, regardless of length, are equipped with internationally universal interfaces (e.g., 226/222/220 bayonet, threaded port), ensuring plug-and-play compatibility with mainstream brand filter housings.
Reliable Performance: Membrane filter cartridges undergo 100% integrity testing; depth filter cartridges are subject to rigorous accuracy classification and dirt-holding capacity testing.
Material Safety: Optional grades complying with FDA, USP Class VI, EP and other regulatory requirements are available, suitable for food and pharmaceutical contact scenarios.
|
Material Types |
Filtration Mechanism & Features |
Standard Available Lengths |
Optimal Application Scenarios |
|
Melt-blown Polypropylene (PP) |
Depth gradient filtration, high dirt-holding capacity, high cost performance, wide chemical compatibility. |
10″, 20″, 30″, 40″ |
Widely used for pre-filtration and general clarification, such as industrial water pretreatment, coarse filtration in food and beverage industry, and protection of downstream precision filter cartridges. |
|
Hydrophilic/Hydrophobic Polyethersulfone (PES) |
Absolute-rated membrane filtration, high flux, low protein adsorption, good hydrophilicity, capable of withstanding high-temperature sterilization. |
10″, 20″, 30″, 40″ |
Sterile filtration and clarification in biopharmaceutical industry (injections, culture media), and final filtration of optical cleaning water. |
|
Hydrophilic Nylon |
Absolute-rated membrane filtration, high mechanical strength, excellent organic solvent resistance. |
10″, 20″, 30″ |
Solvent filtration (HPLC mobile phase), high-end electronic chemicals, and terminal sterilizing filtration of organic solvent-containing systems. |
|
Activated Carbon Composite |
Adsorption + filtration, effectively removing residual chlorine, organic substances, pigments and odors. |
10″, 20″, 30″ |
Improving taste (beverages, drinking water), protecting reverse osmosis (RO) membranes by removing chlorine in advance, and organic matter control. |
Technical Specifications
|
Filter Cartridge Dimensions |
A full length range from 10 inches to 40 inches is available, meeting the full-scale requirements from laboratory small-scale trials to large-scale industrial production. |
|
Standardized Interfaces |
All filter cartridges, regardless of length, are equipped with internationally universal interfaces (e.g., 226/222/220 bayonet, threaded port), ensuring plug-and-play compatibility with mainstream brand filter housings. |
|
Reliable Performance |
Membrane filter cartridges undergo 100% integrity testing; depth filter cartridges are subject to rigorous accuracy classification and dirt-holding capacity testing. |
