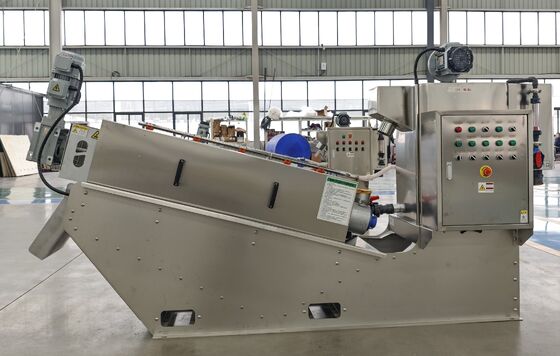

Screw Press Sludge Dewatering Machine: Used for sludge dewatering in industries such as sewage treatment, food processing, printing and dyeing, petrochemical, papermaking, and leather.
The screw press sludge dewatering machine is a new type of solid-liquid separation equipment. It realizes sludge compression and dewatering by virtue of the strong extrusion force generated by the variation of screw diameter and pitch, as well as the tiny gaps between the moving rings and fixed rings. It is widely applicable to sludge dewatering in various industries including municipal sewage, food, beverage, slaughtering and breeding, printing and dyeing, petrochemical, papermaking, leather, and pharmaceuticals.
Its unique dewatering principle makes it suitable for both high and low concentration sludge, pioneering the direct dewatering of low concentration sludge. The innovative structural design enables the equipment to handle various types of sludge with high and low viscosity, especially oily sludge, making it an excellent tool for oily sludge dewatering.
The main body of the screw press sludge dewatering machine is a filtration device composed of multiple fixed rings and moving rings, with a screw shaft running through them. The front section serves as the concentration zone, and the rear section as the dewatering zone. The sludge concentration and press dewatering processes are completed in a single cylinder, replacing the traditional filter cloth and centrifugal filtration methods with a unique and sophisticated filter body structure.
After gravity concentration in the concentration zone, the sludge is transported to the dewatering zone. During the advancing process, as the filter gaps and screw pitch gradually narrow, and under the blocking effect of the back pressure plate, extremely high internal pressure is generated and the volume is continuously reduced, achieving the goal of sufficient dewatering.
Advantages
Anti-clogging Design: The self-cleaning principle ensures it can handle materials with high viscosity and fibrous hair (such as breeding and municipal sludge), ensuring stable and reliable long-term operation.
Low Operating Cost:
Water Saving: No need for high-pressure flushing water pumps, only a small amount of spray water is consumed daily to keep the equipment moist.
Power Saving: The main engine has a small power (usually 0.5–5kW), and the energy consumption of the whole system is only 1/5–1/10 of that of traditional equipment.
Chemical Saving: The optimized flocculation mixing unit can reduce flocculant consumption by 10%–20%.
Fully Automatic Continuous Operation: It can run 24 hours unattended, with stable sludge moisture content after dewatering (usually reaching 75%–85%), and can realize linkage control with upstream sludge discharge.
Compact Structure & Flexible Installation: The modular design results in a small floor area (about 1/3 of that of belt-type machines). It can be installed indoors or placed in containerized skid-mounted modules, adapting to various site conditions.
Environmentally Friendly & Easy Maintenance: The fully enclosed design keeps the on-site environment clean. Daily maintenance only requires regular inspection of lubrication and bearing seals, with only 1–2 comprehensive maintenance procedures needed each year.
Technical Specifications
|
Treatment Capacity |
10 - 600 kg-DS/h (multiple models available for selection) |
|
Main Body Material |
304 stainless steel (standard), core discs can be optional enhanced engineering plastics or stainless steel |
|
Screw Shaft |
304 stainless steel with special surface hardening or coating treatment for enhanced wear resistance |
|
Drive Device |
Cycloidal pinwheel reducer or worm gear reducer |
|
Control System |
PLC automatic control |
|
Flocculation System |
Optional integrated fully automatic preparation and dosing device |
|
Dewatered Sludge Moisture Content |
75% - 85% (depending on sludge properties and conditioning effect) |
|
Equipment Weight |
0.5 - 7 tons with a compact structure |
|
Power Supply |
200 - 400V 50/60Hz (or customized according to customer requirements) |
