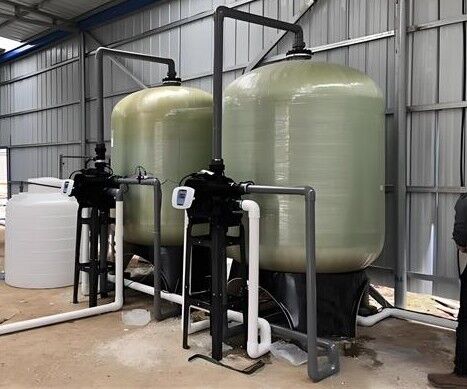

Fully Automatic Water Softening Equipment For Boilers / Cooling Systems / Heat Exchange Systems

Water Softening Treatment Equipment: Used for water softening treatment in boilers, cooling systems, heat exchange systems, food and beverage production, and pharmaceutical and chemical industries.

Quick Details

We provide a fully automatic integrated water treatment system that integrates quartz sand filtration, activated carbon filtration, and ion exchange softening. Through three-stage precision treatment, this system not only completely removes hardness ions from water but also effectively addresses issues of suspended impurities, organic matter, and residual chlorine. It provides comprehensive protection from pre-treatment to core softening for industrial boilers, production processes, and high-end commercial facilities, significantly extending equipment service life and reducing overall operational costs.

Conventional water softening equipment is prone to resin contamination, clogging, and oxidation when dealing with complex raw water, leading to reduced efficiency, frequent regeneration, and a sharp surge in operational costs. This integrated system creates optimal influent conditions for the core softening unit through a scientific three-stage pre-treatment process:

Quartz Sand Filtration (System Protection & Turbidity Removal):Utilizing multi-layer precision-grade quartz sand filter media, it efficiently intercepts and removes suspended solids, sediment, colloidal particles, and large-sized impurities from water. It effectively reduces water turbidity (SDI), prevents physical clogging of subsequent activated carbon filter layers and softening resin, ensures unobstructed system operation, and reduces backwashing frequency.

Activated Carbon Filtration (Core Protection & Oxidant Removal):Adopting high-quality granular activated carbon filter media, it deeply removes free chlorine, chloramines, organic matter, partial pigments, and odors from water via strong adsorption capacity. It completely eliminates oxidative damage to softening resin caused by residual chlorine, prevents resin fragmentation and inactivation due to "poisoning", and extends resin service life significantly (usually by 2–3 times). Meanwhile, it improves water taste and safety.

Ion Exchange Softening (Core Function & Hardness Removal):Under the high-quality influent conditions after the first two stages of protection, the sodium-type cation exchange resin in the softening unit operates efficiently to accurately replace calcium and magnesium ions in water, producing softened water with extremely low hardness. It fundamentally prevents scale formation on pipelines, equipment, and heat exchange surfaces, realizing the core value of the system.

Core Product Advantages

Comprehensive Pre-treatment & Ultimate Protection:The unique pre-treatment combination of "sand filtration + carbon filtration" provides a dual barrier for costly softening resin, fundamentally eliminating resin performance degradation caused by colloidal contamination, organic clogging, and residual chlorine oxidation, which is the key to the long-term stable operation of the system.

Excellent & Stable Effluent Quality:The produced water features extremely low hardness (≤0.03 mmol/L), as well as being clear, odor-free, and free of residual chlorine, meeting the most stringent industrial and high-quality water demands.

Fully Automatic & Intelligent Operation with Easy Maintenance:With one-click setup, the system automatically completes the entire process of filtration, softening, backwashing, and regeneration. Users only need to replenish salt regularly, resulting in minimal management burden.

Significant Long-term Economic Benefits

Resin Protection: Greatly extends resin replacement cycles and saves core consumable costs.

Energy Consumption Reduction: Prevents scaling on heat exchange equipment and maintains optimal thermal efficiency.

Maintenance Reduction: Avoids system failures and frequent maintenance caused by upstream water quality issues.

Highly Integrated & Modular Design:The tanks can be made of corrosion-resistant materials such as Fiberglass Reinforced Plastic (FRP), and can be flexibly combined (single unit or multiple units in parallel) according to flow requirements, optimizing floor space and enabling quick installation.

Wide Application Adaptability:It is especially suitable for areas with high chlorine content in municipal tap water, fluctuating turbidity in surface water, or iron, manganese, and organic matter in groundwater. It serves as an ideal pre-treatment unit for reverse osmosis (RO) systems, steam boilers, precision process circulating water, and other applications.

Main Application Fields

Industrial Sector: Pre-treatment of process water for boiler feedwater, closed/open circulating cooling water, heat exchange stations, textile printing and dyeing, food and beverage processing, pharmaceutical and chemical industries, etc.

Commercial Sector: High-end hotels, data center cooling towers, large central air conditioning systems, hospital sterilization equipment, commercial laundries.

Technical Specifications of 10 Tons/Hour Water Softening Treatment Equipment

Application Scope:

Households and residences, commercial services and public facilities, industrial boilers and heating systems, industrial production processes, etc.

Water Softening System Flow Chart

(Customization of the process can be carried out according to the influent water quality and effluent hardness requirements)

Raw Water (Surface Water, Groundwater, Tap Water)

↓

Pretreatment (Quartz Sand Filter, Activated Carbon Filter, etc.)

↓

Fully Automatic Softening Processor (Treatment Tank, Automatic Control Head, Salt Dissolving Tank, etc.)

↓

Post-filter (1 μm Filtration Precision)

↓

Product Water
